PENTA AIRCLEANER

3D View - coming soon
3D View - coming soon

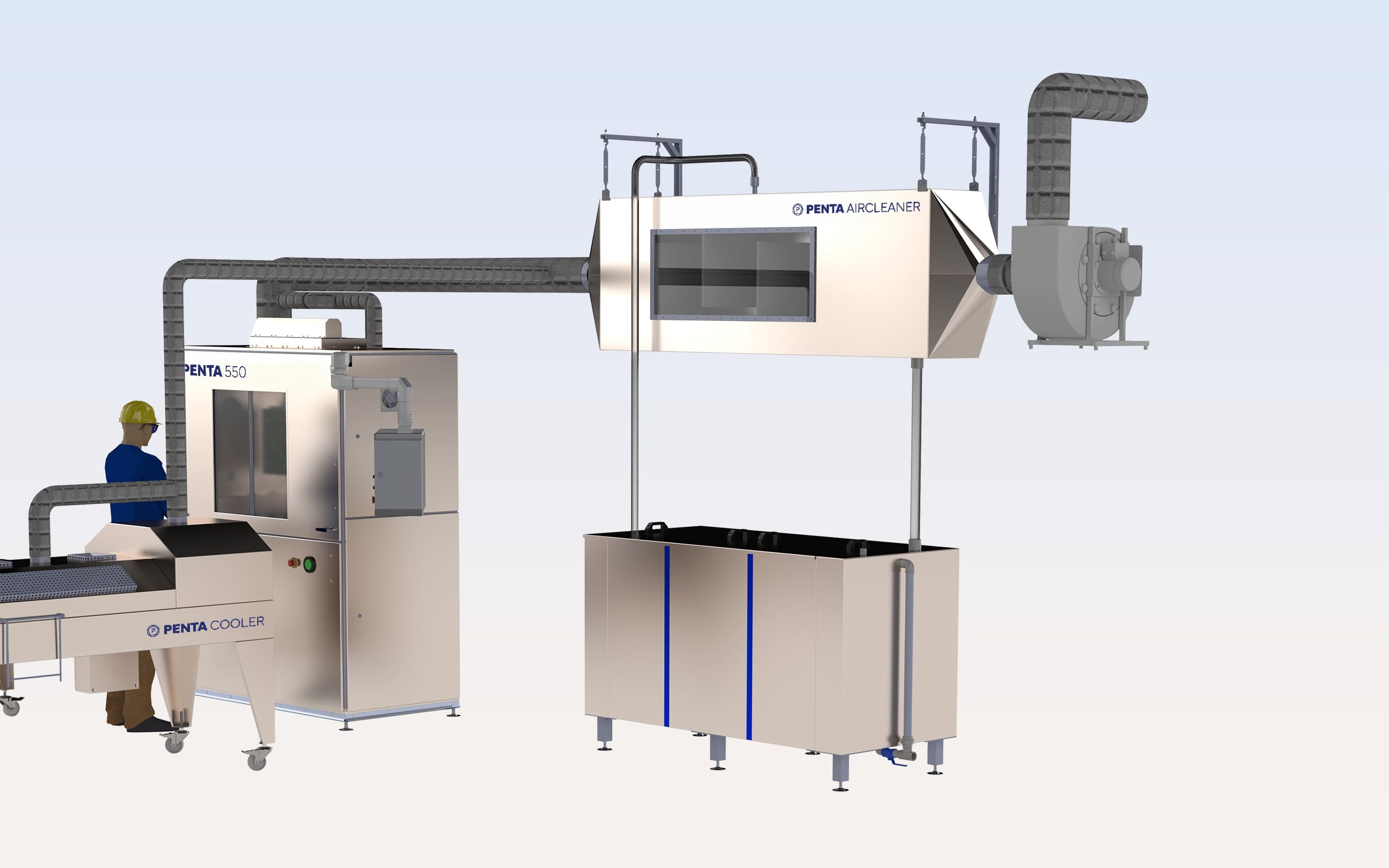

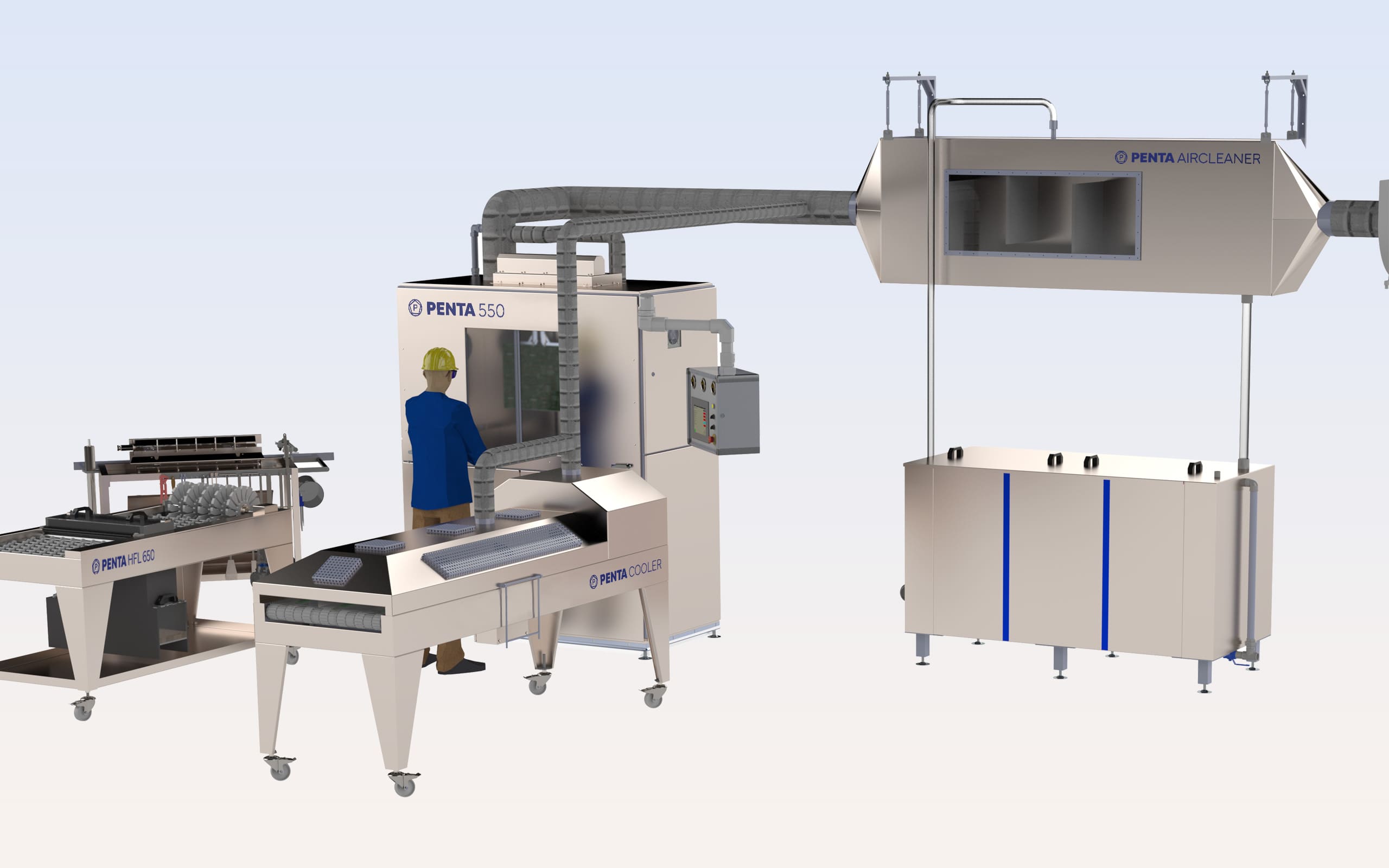

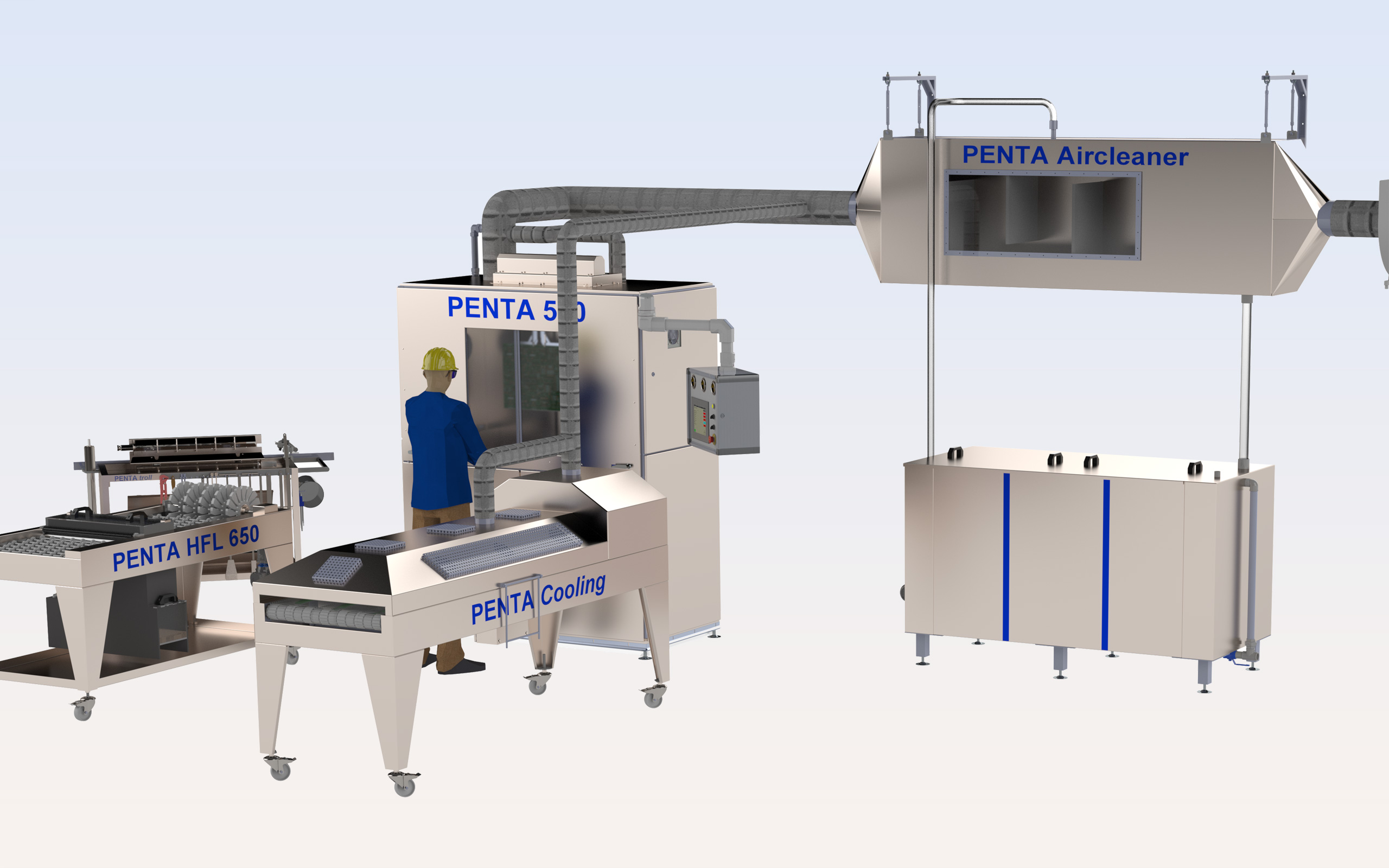

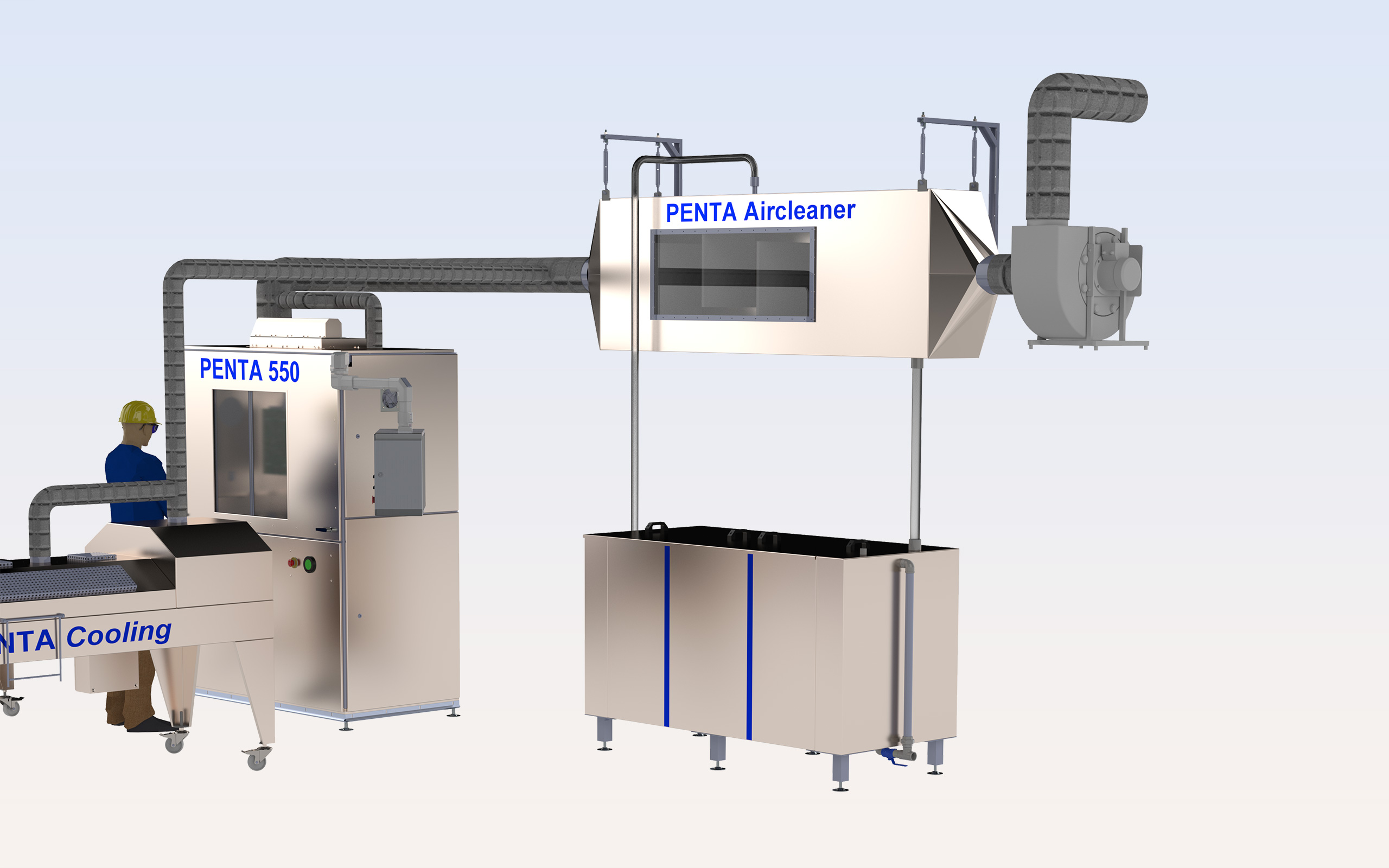

Penta Air Cleaner can be ordered as a standard air washer suitable for Penta 550, Penta 580, Penta Automatic and other HALS, or individually adapted to your requirements in almost any size and air capacity. The standard version of PENTA Air Cleaner consists of a 2500 x 850 x 400 mm body made of 1.5 mm stainless steel sheet with a viewing window at the front to check the function.
The inlet and outlet opening is an R 200 - R300 mm flange connection for connection to the HAL and to the suction exhaust fan (optional order). Inside the air washer there are labyrinth chambers with PP fillers. A droplet separator and a spray pipe system for rinsing the packing are integrated. The water sprinkling/rinsing takes place via an inlet connection (top) R3/4".
The water drain connection on the underside is R11/4". Water from the neutralization system or a sedimentation tank system is recommended for rinsing. The power of the required submersible pump is between 0.5-1.0 kW depending on the delivery head.

Features

Mode of operation / efficiency
The heated HAL exhaust air condenses on the PP fillers due to the increase in volume in the air washer. Flux residues and all pollutants, which are not in the gas phase, are washed out by 90 %. Aerosols and odorous substances are not washed out!
Mode of operation / efficiency
The heated HAL exhaust air condenses on the PP fillers due to the increase in volume in the air washer. Flux residues and all pollutants, which are not in the gas phase, are washed out by 90 %. Aerosols and odorous substances are not washed out!
Installation and maintenance
The air washer is prepared for ceiling, wall and floor mounting and can be suspended using the clamping screws supplied. Mounting brackets are used for floor mounting.The air washer remains maintenance-free if the PP fillers are flushed in accordance with regulations.
Settling tank
Suitable stainless steel sedimentation tanks with a multi-chamber system are available for every air washer. The size and volume can be adapted to customer requirements. The settling tanks have three chambers, ceramic feed pump (optional), automatic fresh water dosing, overflow, connections for fresh water, air washer and a drain valve.
