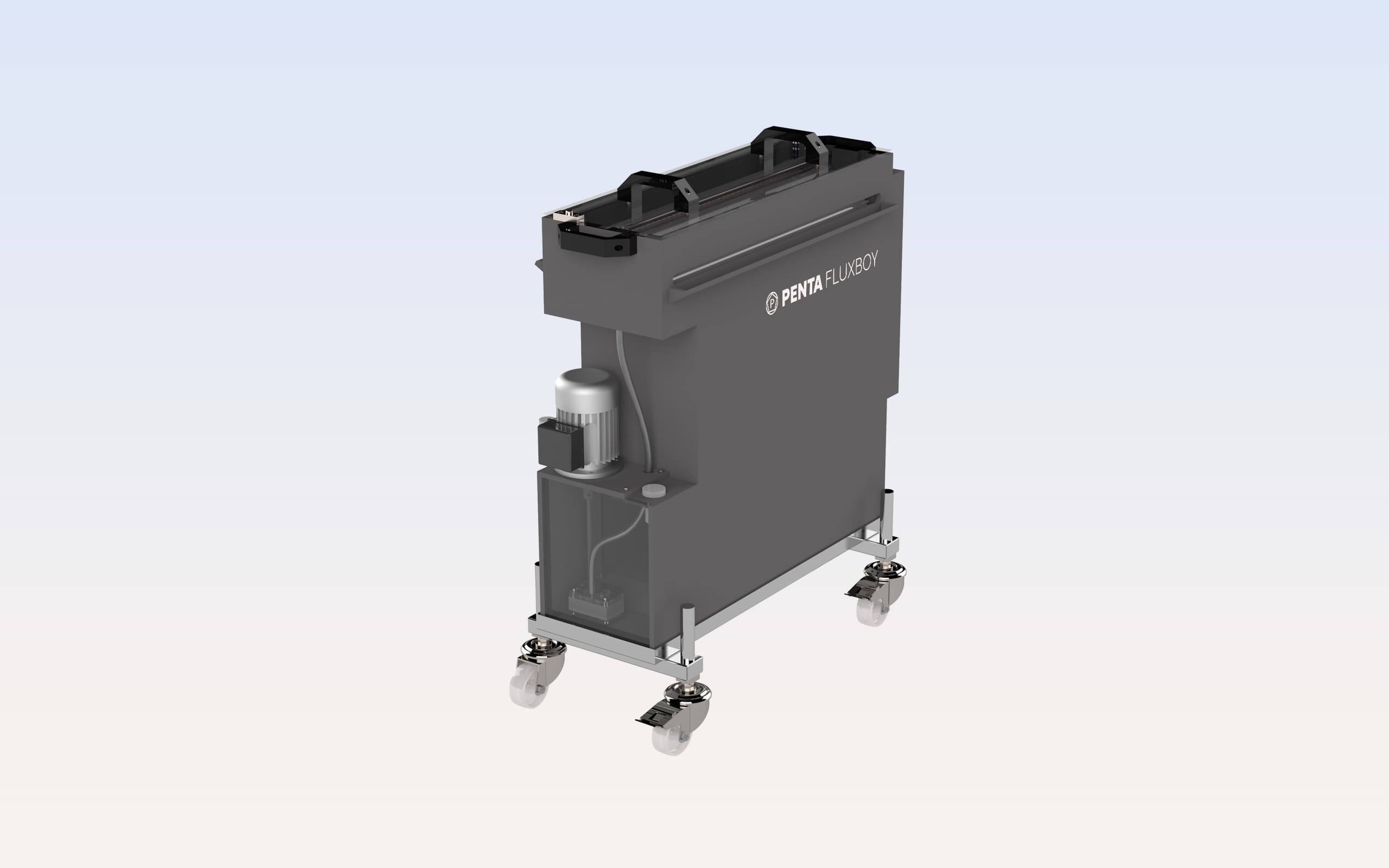

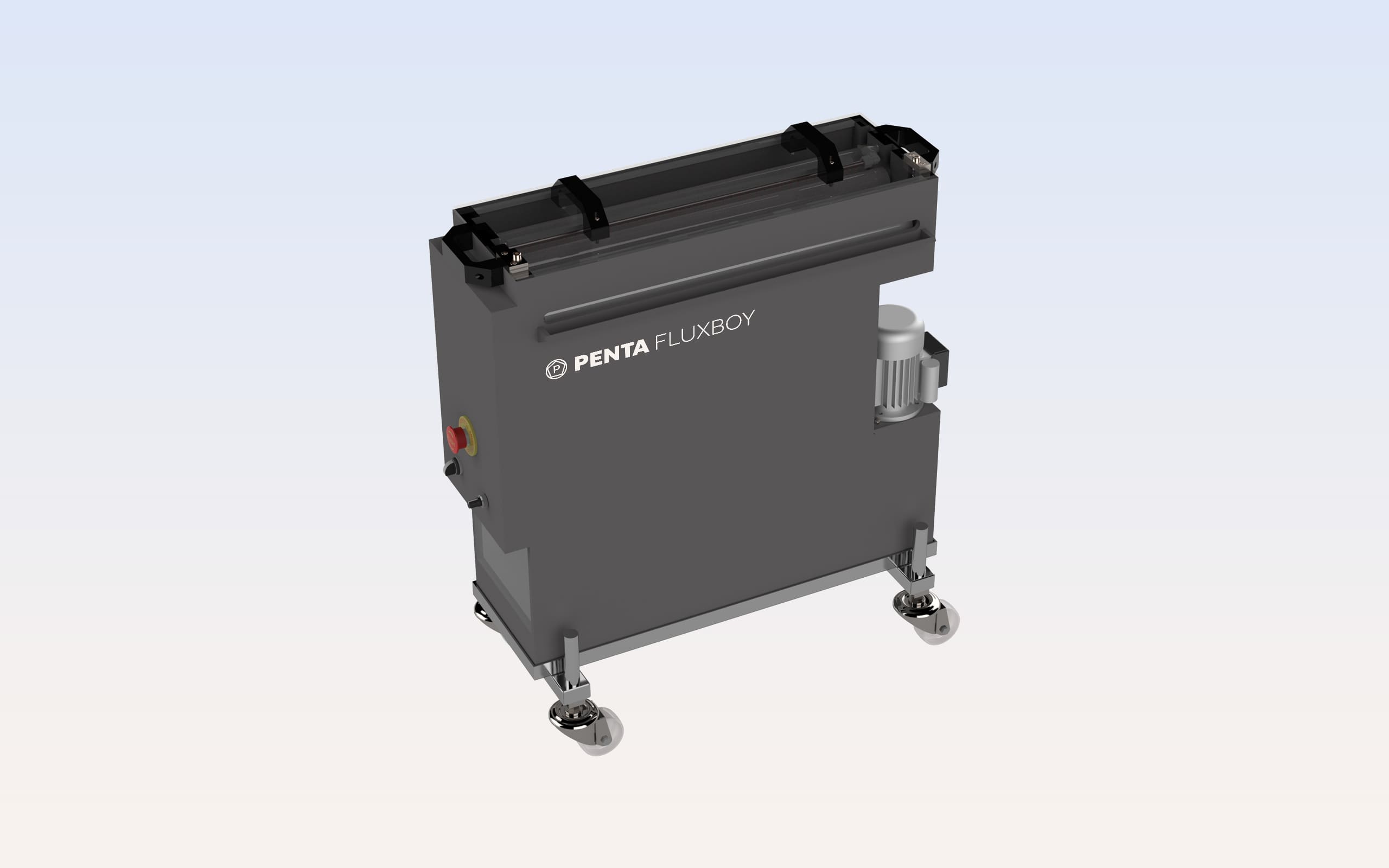

PENTA FLUXBOY

The little brother of PENTA HFL 650, PENTA fluxboy, has been specially designed for customers with space problems. It is loaded manually.

The fluxboy can be free-standing or integrated into a production line. The body of PENTA fluxboy is made of plastic. The fluxer rollers are driven by a speed-controlled motor that can be set to advance at up to 5 m/min. The pump is made of titanium and Teflon. We manufacture the rollers from a special plastic that is chemically resistant. The flux level is controlled by means of a min/max switch.

Technical data

• Width x depth x height: 1800 x 900 x 2200 /mm
• Weight: 950 kg
• Throughput: 150 ... 200
• Max. Panel size: 700 x 700 x 6 / mm
• Air pressure: 6...8 bar, appr. 280 Nl/cycle,
• Compressor: 14 kW
• Exhaust air: 2000 m3 / h, 800 Pa
• Solder capacity: 365 kg lead solder, 320 kg lead-free solder
• Electrical installation: 48 kW
• Consumption: 26 kW
